Belkin SurgeMaster F9H710-06
Belkin SurgeMaster F9H710-06
Overview
The Belkin SurgeMaster F9H710-06 is a seven-outlet surge protector featuring telephone-line protection, surge suppression, and an attached six-foot power cord.
The model was marketed as part of Belkin's SurgeMaster product family and was intended for protecting computers, peripherals, telecommunications equipment, and other consumer electronics from power surges.
Physical Description
The F9H710-06 incorporates sliding outlet covers on all seven outlets. These covers may be positioned to expose or conceal outlet openings when not in use, reducing the accumulation of dust and debris.
The documented example exhibited dirt accumulation within the cover recesses. Following cleaning, all outlet covers operated normally.
Telephone-line protection is provided through modular input and output jacks located at one end of the enclosure.
A removable gray cable-management bracket is positioned above the telephone-line protection jacks.
The bracket slides vertically within molded slots and can be removed or raised to install cables, then lowered to align and retain connected telephone and power cables along the length of the enclosure.
The underside incorporates two keyhole-style wall-mounting slots positioned along one side of the enclosure rather than along its centerline.
Combined with the rounded, boat-shaped lower housing, this arrangement can result in reduced stability when mounting the unit and may allow the enclosure to rock slightly during insertion or removal of plugs.
Features
- Seven grounded AC outlets
- Sliding outlet covers on all seven outlets
- Protected-status indicator
- Grounded-status indicator
- Non-illuminated rocker power switch
- Telephone-line surge protection
- Cable-management bracket
- Attached six-foot power cord
Specifications
- Model: F9H710-06
- Outlets: 7
- Cord Length: Approximately 6 ft
- Length: Approximately 14.25 in (36.2 cm)
- Width:
- Approximately 3.125 in (7.9 cm) across the top surface
- Approximately 2.25 in (5.7 cm) across the base
- Height: Approximately 1.75 in (4.4 cm)
- Cord Length: Approximately 6 ft (1.8 m)
- Maximum Load: 15 A
- Voltage Rating: 125 VAC
- Frequency: 60 Hz
- Maximum Connected Load: 1875 W
- TVSS Rating: 330 V
- UL File Number: E152555
- Country of Manufacture: China
Construction Notes
No disassembly was attempted.
The enclosure appears to utilize a snap-together construction with internal plastic retention clips. No externally accessible screws were observed. Opening the housing would likely require prying apart the enclosure along the seam, potentially damaging the case or visible exterior surfaces.
To preserve the condition of the documented example, disassembly was not attempted.
Product Gallery
-
Overall view of the Belkin SurgeMaster F9H710-06. -
Outlet covers in the open position. -
Outlet covers in the closed position. -
Right-side profile view. -
Left-side profile view. -
Power-cord entry and control section. -
Sliding outlet covers in the closed position. -
Outlet cover opened to expose the receptacle. -
Telephone-line protection ports and cable-management bracket. -

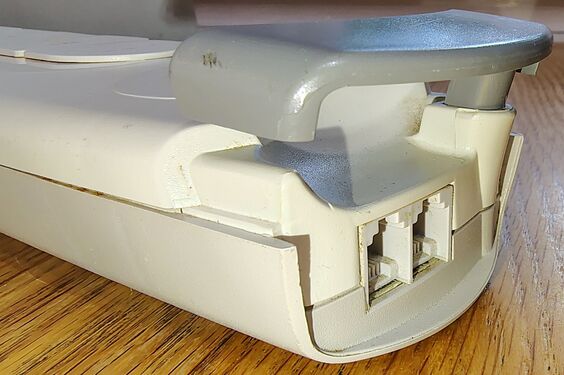

Cable-management bracket raised. -

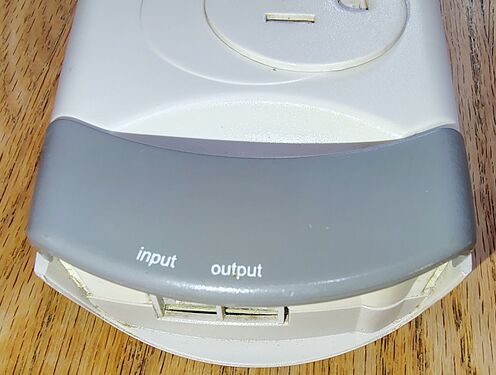

Telephone protection section and cable retainer. -

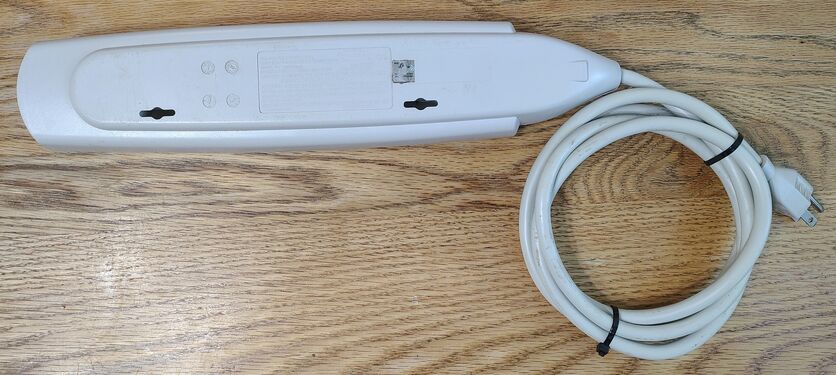

Underside view showing mounting provisions and product markings. -

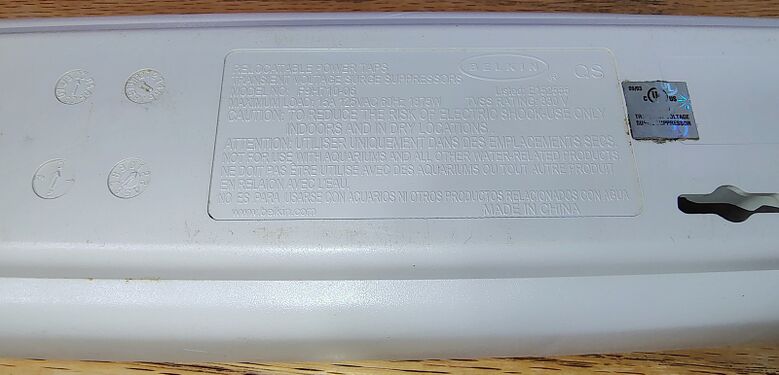

Product label, date codes, and mounting slot. -

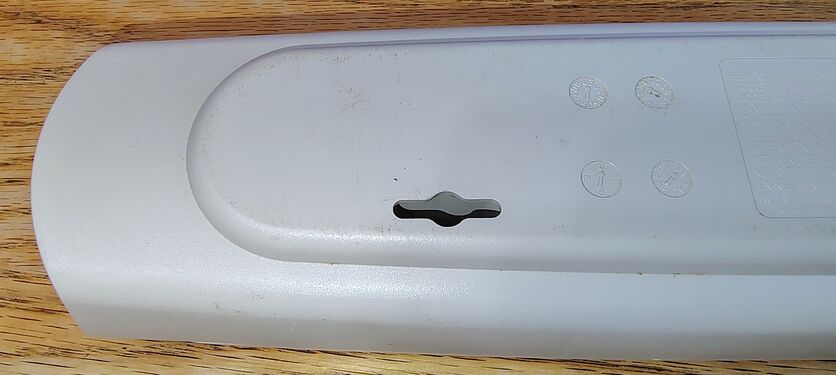

Telephone-protection end and wall-mounting slot. -

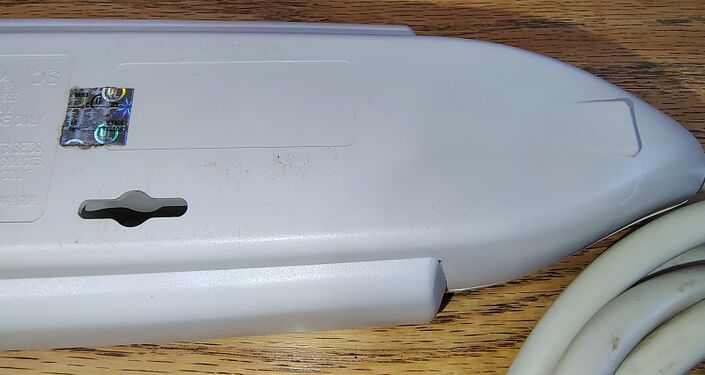

Power-cord entry end and certification markings.
Service History
The documented example remained in active service until 2026, when it was replaced by an Amazon Basics 270103-B surge protector.
At the time of removal from service, both the Protected and Grounded indicators remained illuminated, suggesting that surge protection and grounding status were still present.
