Globe Electric 12-003-7MS
The Globe Electric 12-003-7MS is a direct-plug surge protector manufactured by Globe Electric and marketed as part of the company's Space Plug product family. The design incorporates six grounded outlets arranged on two independently adjustable outlet banks flanking a central status-indicator section.
The documented example is notable for its wall-hugger form factor, rotating outlet assemblies, and compact direct-plug construction intended to expand receptacle capacity without requiring an attached power cord.
Overview
The Globe Electric 12-003-7MS is a consumer-oriented direct-plug surge protector designed to increase the number of available grounded receptacles while maintaining a compact footprint.
Unlike conventional surge protectors that utilize an attached power cord, the 12-003-7MS plugs directly into a wall receptacle and distributes power through six grounded outlets arranged in two three-outlet rotating banks.
The design incorporates independent SURGE and GROUND status indicators together with Globe Electric branding molded into the central section of the enclosure. The adjustable outlet assemblies appear intended to improve accommodation of oversized plugs, transformers, and power adapters.
The documented example represents an example of the wall-tap surge-protection products that became increasingly common in residential and home-office environments during the 2000s and 2010s.
Historical Context
The 12-003-7MS appears to have been marketed as a space-saving alternative to traditional corded surge protectors. The product combines surge protection and outlet expansion in a single direct-plug assembly intended for residential and consumer-electronics applications.
The independently adjustable outlet banks distinguish the unit from many fixed-outlet wall-tap surge protectors. The design allows connected devices to occupy different orientations while reducing interference between adjacent plugs and power adapters.
Additional manufacturer literature identified the product as part of the Globe Electric "Space Plug" product line.
The literature highlighted several features:
- Six grounded outlets
- Dual 90° swivel outlet banks
- Two USB charging ports
- Combined 2.1A USB charging capability
- SURGE status indicator
- GROUND status indicator
The marketing materials emphasized space savings and improved accommodation of multiple plug sizes and power adapters.
Globe Electric continues to market surge protectors, power strips, outlet adapters, and related power-distribution products as part of its contemporary product lineup.
The product was marketed by Globe Electric as the "Space Plug" swivel surge-protector series. Manufacturer literature emphasized the unit's rotating outlet banks, integrated USB charging ports, compact wall-tap form factor, and space-saving design.
Documented Example
- OldSurge ID: OS-0026
- Manufacturer: Globe Electric
- Model: 12-003-7MS
- Item Number: 7791301
- Manufacturing Date: April 2014
Specifications
The Globe Electric 12-003-7MS combines six grounded outlets with a direct-plug wall-tap form factor and integrated surge protection.
- Manufacturer: Globe Electric
- Model: 12-003-7MS
- Item Number: 7791301
- Device Type: Direct-Plug Surge Protector
- Country of Origin: China
- Outlets: 6 grounded outlets
- USB Charging Ports: 2 × USB Type-A
- Surge Protection Rating: 2100 Joules
- Voltage Protection Rating (VPR):
- 400V (L-N) Line to Neutral
- 400V (L-G) Line to Ground
- 400V (N-G) Neutral to Ground
- Electrical Rating: 15A, 125VAC, 60Hz
- Maximum Load: 1875W
- Length: Approximately 6.5 in (16.5 cm)
- Width: Approximately 4.0 in (10.2 cm)
- Height: Approximately 1.38 in (3.5 cm)
- Weight: Approximately 10.8 oz (306 g)
Notable Characteristics
- Direct-plug wall-hugger construction
- Six grounded outlets
- Dual independently rotating outlet banks
- Two integrated USB charging ports
- 2100-joule surge-protection rating
- Independent SURGE and GROUND status indicators
- April 2014 manufacturing date
Weight

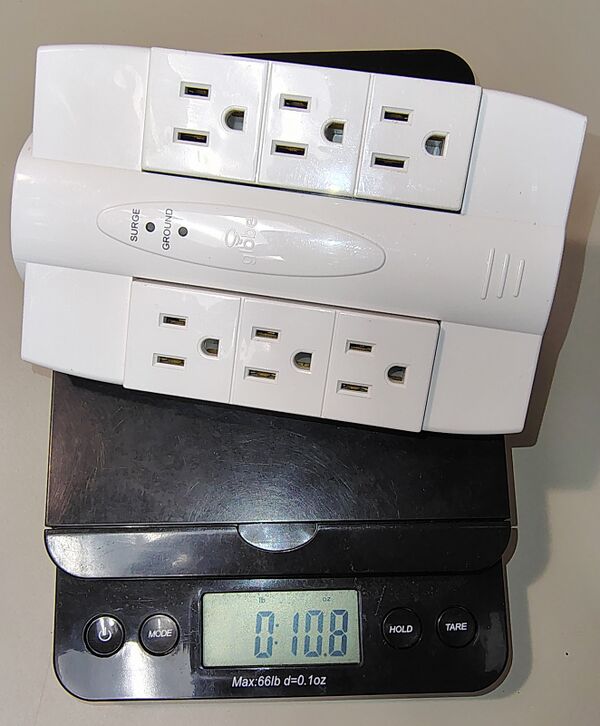

The documented example weighs approximately 10.8 oz (306 g).
The relatively substantial weight is consistent with the unit's direct-plug construction, internal surge-suppression components, rotating outlet assemblies, and integrated USB charging circuitry.
Physical Characteristics
The Globe Electric 12-003-7MS utilizes a compact direct-plug wall-tap design intended to expand a single receptacle into six grounded outlets.
A central recessed panel contains SURGE and GROUND status indicators together with molded Globe Electric branding.
Each outlet bank is capable of rotating approximately 90 degrees relative to the central housing. The arrangement allows connected devices and transformers to be positioned in multiple orientations while reducing interference between adjacent plugs.
Two USB Type-A charging ports are positioned near the upper corners of the enclosure. Contemporary manufacturer literature described the ports as providing a combined output of 2.1 amps.
The enclosure measures approximately 6.5 inches (16.5 cm) long, 4.0 inches (10.2 cm) wide, and 1.38 inches (3.5 cm) thick.
Photographs
-

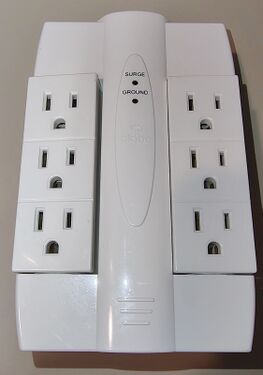

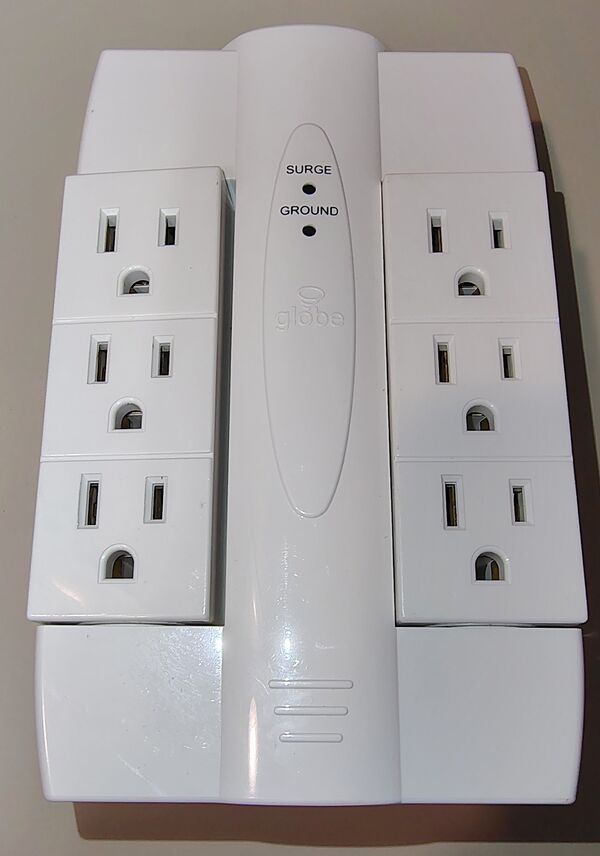

Overall view of the Globe Electric 12-003-7MS surge protector. -

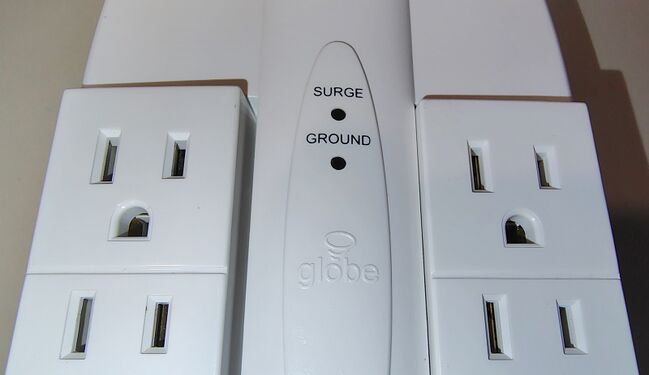

Close-up of the central section showing SURGE and GROUND status indicators together with molded Globe Electric branding. -

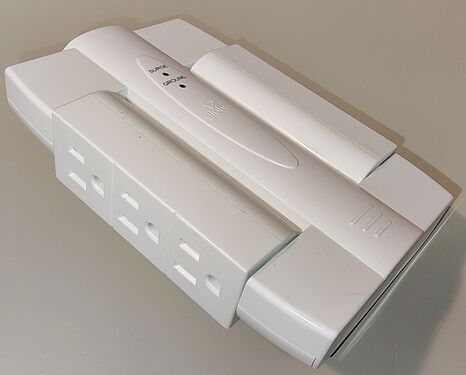

Oblique view showing the dual rotating outlet banks and central indicator section. -

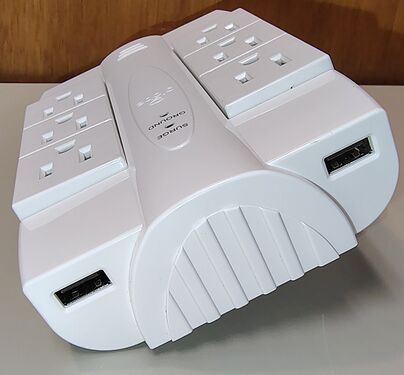

Top oblique view showing the rotating outlet banks, dual USB charging ports, and status indicators. -

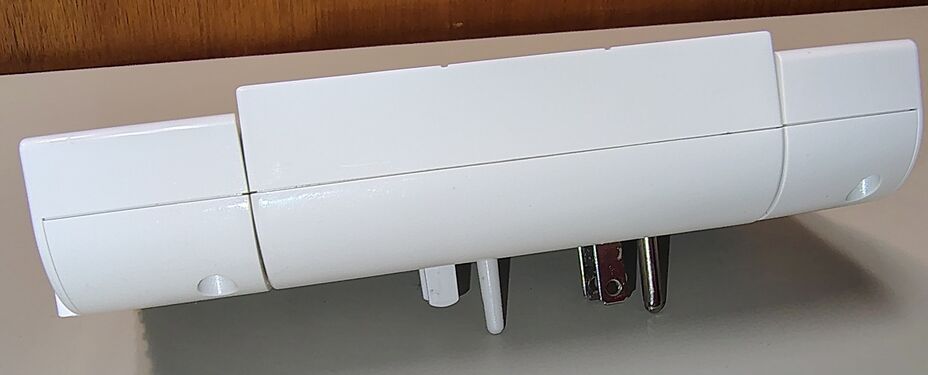

Side profile illustrating the wall-hugger enclosure design. -
Bottom view showing the direct-plug attachment arrangement. -
Close-up of an integrated USB Type-A charging port. -

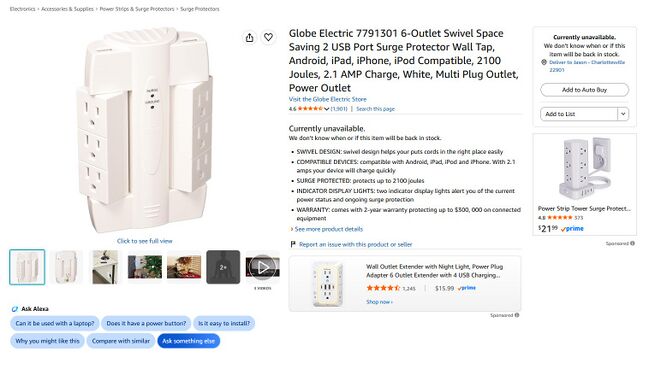

Archived Amazon listing identifying Globe Electric item 7791301 as a 6-Outlet Swivel Space Saving 2 USB Port Surge Protector Wall Tap. -

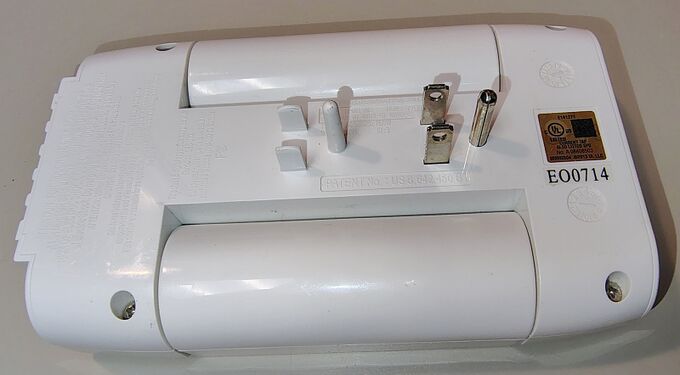

Rear view showing product markings, date wheels, UL label, and direct-plug attachment assembly.
Date Codes
The documented example incorporates molded date wheels indicating manufacture during April 2014.
The rear enclosure also contains product-identification markings including:
- Model: 12-003-7MS
- Item Number: 7791301
- Country of Origin: China
- Electrical Rating: 15A, 125VAC, 60Hz, 1875W
- Voltage Protection Rating: 400V
The rear housing further identifies the unit as a tested Type 3 Surge Protective Device (SPD).
-
Rear overview showing the plug assembly, molded date wheels, UL label, and enclosure markings.
-

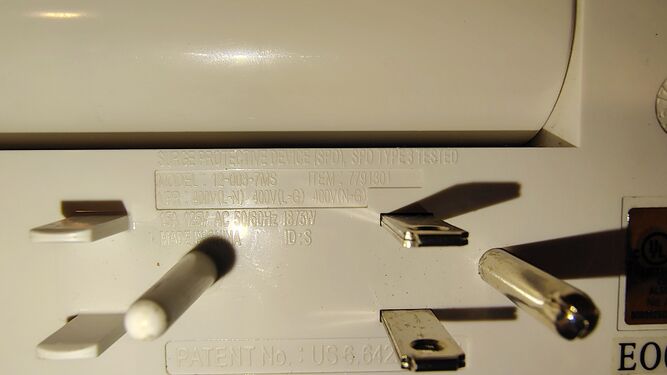

Model, item number, electrical ratings, and surge-protection markings.
Condition Upon Acquisition
Description of condition as acquired.
Functional Testing
Description of operational testing, polarity testing, indicator operation, and test results.
-
Testing photograph.
Teardown
Description of disassembly, construction details, PCB markings, suppression components, wiring, safety features, and observations.
Include analysis whenever possible:
- How does construction compare to earlier models?
- Is the design unusually robust or simplified?
- What does it suggest about the target market?
-
Internal construction.
Comparison Notes
Compare against similar examples already documented by the archive.
Examples:
- Earlier and later revisions
- Different PCB generations
- Different levels of enclosure aging
- Weight differences
- Changes in manufacturing location
Recall Information
If applicable.
Historical References
Historical retail and manufacturer documentation provides additional information regarding the Globe Electric 12-003-7MS beyond that present on the documented artifact.
An Amazon.com listing identified the product as:
Globe Electric 7791301 6-Outlet Swivel Space Saving 2 USB Port Surge Protector Wall Tap
The listing described the unit as providing six grounded outlets, dual swivel outlet sections, two USB charging ports, a 2100-joule surge-protection rating, combined 2.1-amp USB charging capability, SURGE and GROUND status indicators, and a connected-equipment protection warranty.
Manufacturer literature identified the product as part of Globe Electric's Space Plug product family and marketed it as The Original Space Plug. Promotional materials emphasized the product's 90-degree swiveling outlet banks, integrated USB charging ports, space-saving wall-tap construction, and visual status indicators.
A surviving instruction sheet associated with item number 7791301 provides installation guidance, indoor-use warnings, and manufacturing documentation references including:
- Designer: RP
- Docket: 08-037-20
- Factory: RITE TECH
The instruction sheet illustrates the intended installation method and confirms that the product was designed for indoor use on grounded receptacles.
The Amazon.com product-information page identified Globe Electric item 7791301 as having first appeared in Amazon's product catalog on August 26, 2013. This date closely precedes the April 2014 manufacture date of the documented example and suggests the product family was introduced by at least 2013.
Customer-review data preserved on Amazon.com indicates that the product accumulated more than 1,900 customer reviews and maintained an average rating of approximately 4.6 out of 5 stars. Customer feedback frequently cited the rotating outlet design, compact footprint, and USB charging capability as noteworthy features.
-
Manufacturer marketing material identifying the product as part of Globe Electric's "Space Plug" series. -

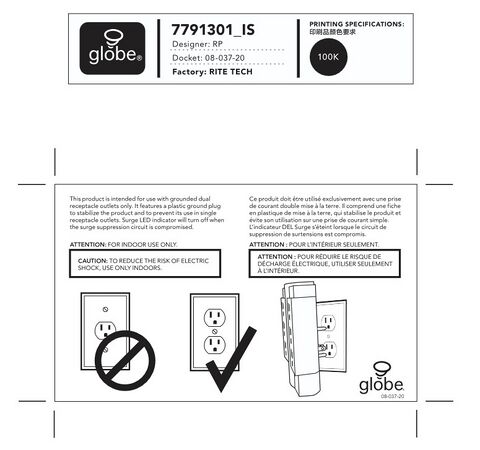

Instruction-sheet image associated with Globe Electric item 7791301. -

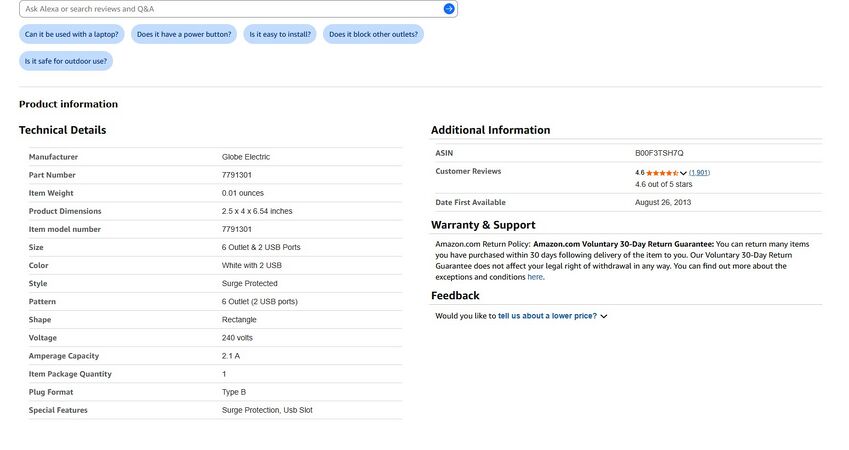

Amazon.com product information showing technical specifications and August 26, 2013 catalog availability date. -

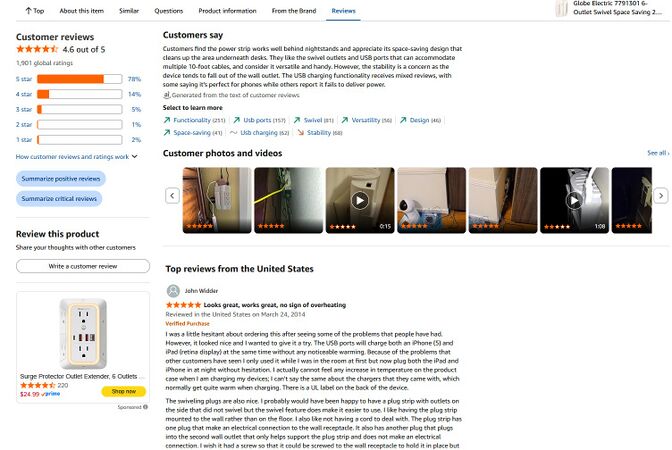

Customer-review summary showing long-term user feedback and ratings. -

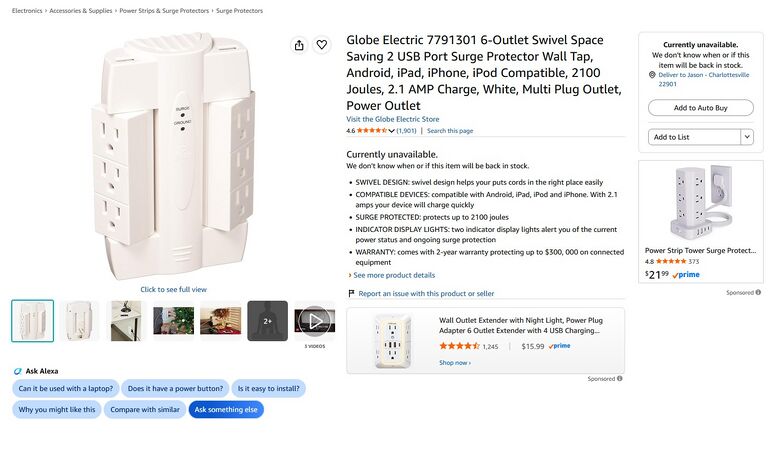

Amazon.com listing identifying the unit as a 6-Outlet Swivel Space Saving 2 USB Port Surge Protector Wall Tap.
Notes
- The product combines direct-plug surge protection, outlet expansion, and USB charging capability in a single enclosure.
- Manufacturer literature identified the product as part of the Globe Electric "Space Plug" series.
- The April 2014 manufacturing date places the unit within the period when integrated USB charging ports were becoming increasingly common on consumer surge protectors.
- Contemporary marketing materials emphasized the rotating outlet-bank design as a space-saving feature.
