File:Surge universal 71641 yellowed teardown open 01.jpg
Jump to navigation
Jump to search
Size of this preview: 800 × 364 pixels. Other resolution: 1,600 × 728 pixels.
Original file (1,600 × 728 pixels, file size: 425 KB, MIME type: image/jpeg)

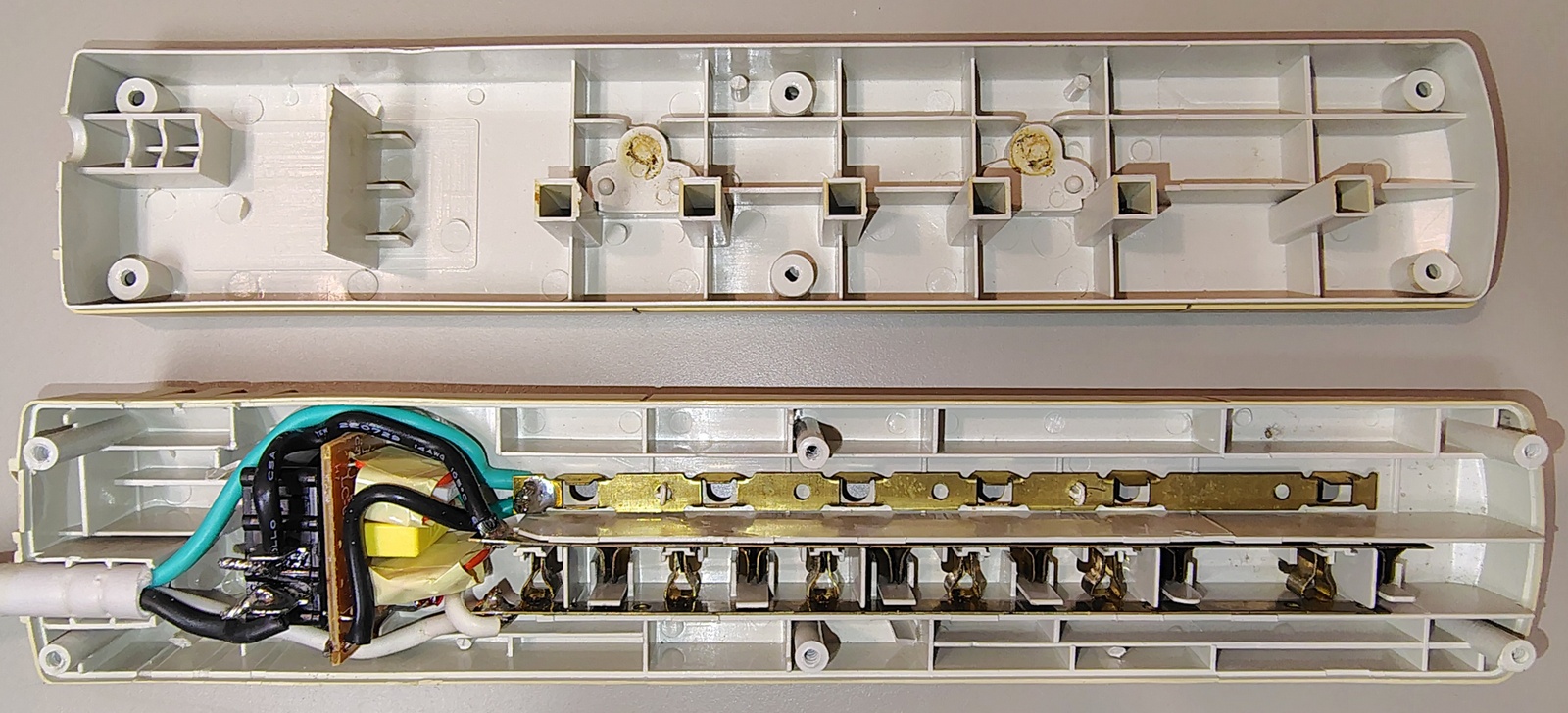

Universal 71641 opened following disassembly. Visible components include stamped brass bus bars, outlet-contact assemblies, internal wiring, the surge-suppression circuit board, and the transformer-spaced outlet assembly.
