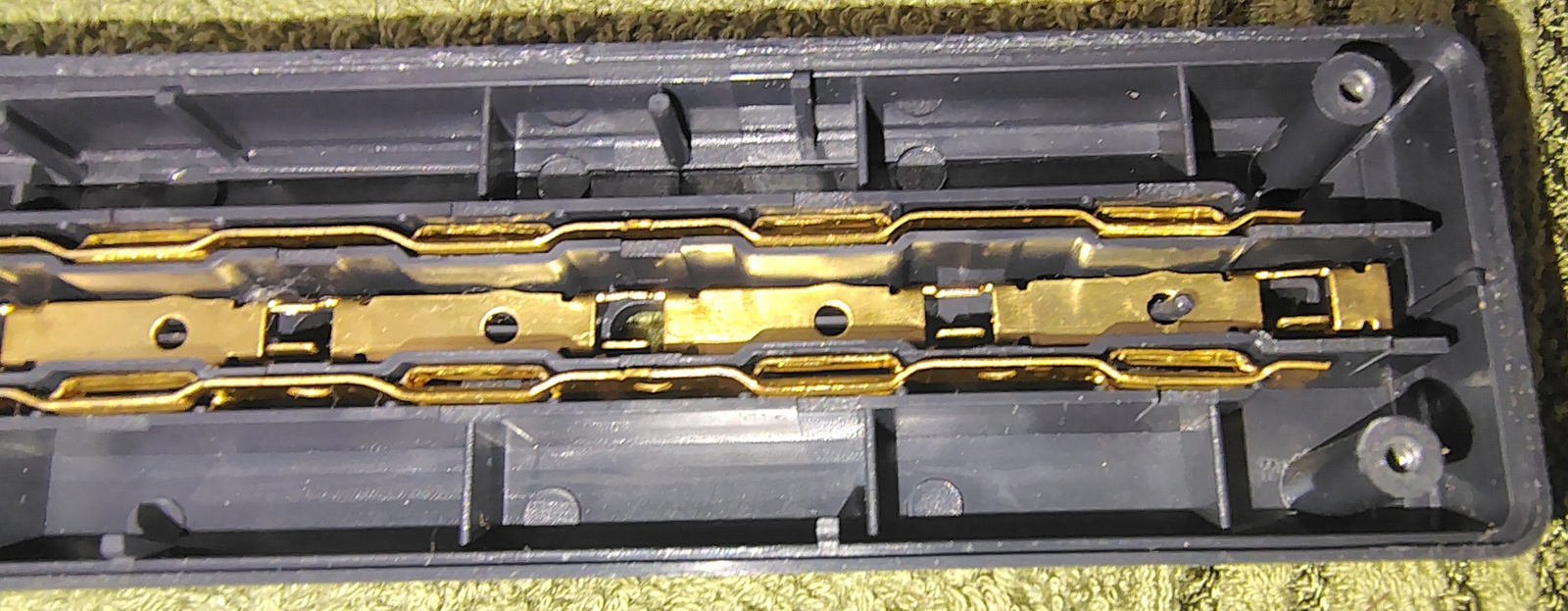

Interior view of the outlet-end portion of the lower housing showing the termination of the stamped brass bus bars, outlet contact assemblies, and molded supports used to position and secure the electrical components.
