File:Surge AmazonBasics 270103-B disassembly CircuitBoard 01.jpg
Jump to navigation
Jump to search
Size of this preview: 800 × 351 pixels. Other resolution: 1,600 × 702 pixels.
Original file (1,600 × 702 pixels, file size: 565 KB, MIME type: image/jpeg)

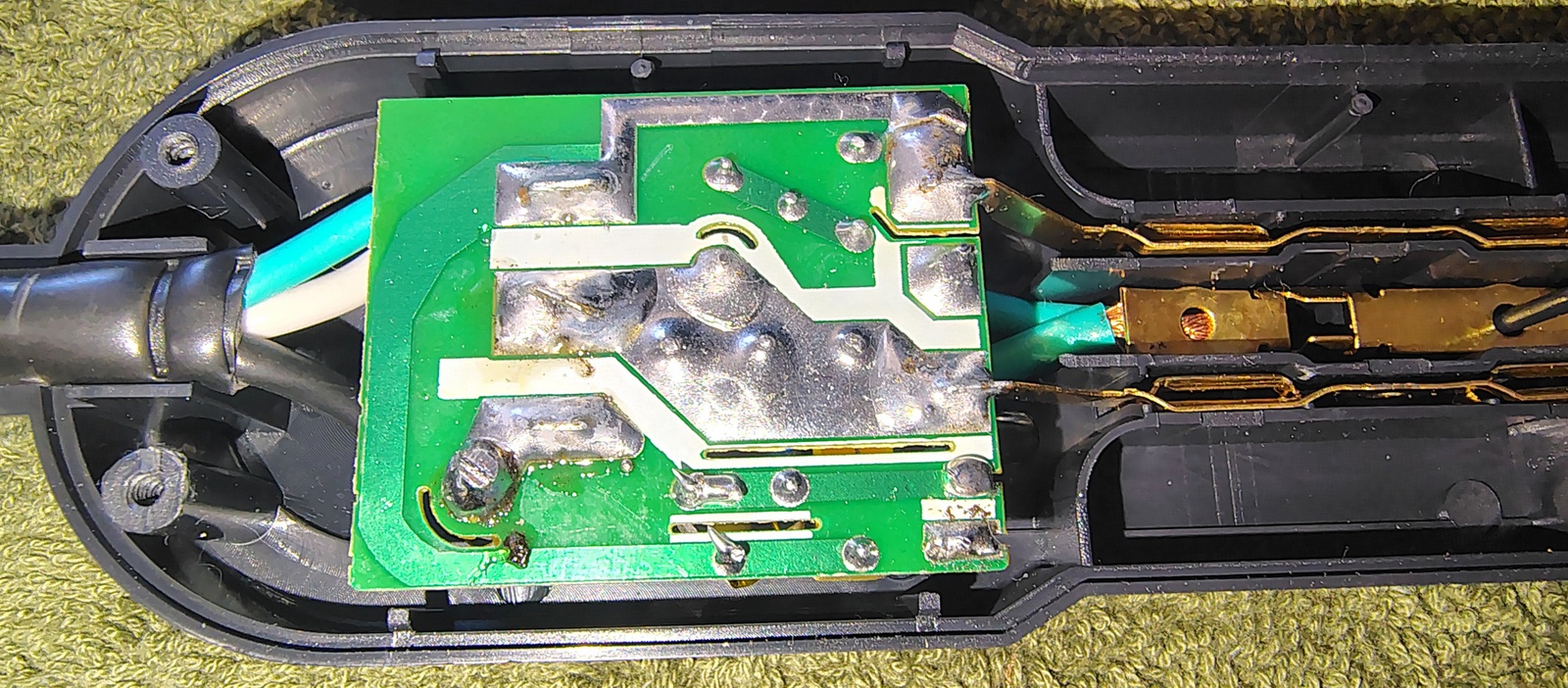

Top-down view of the surge-protection circuit board used in the Amazon Basics 270103-B surge protector. The board is mounted near the power-cord entry and connects the incoming power conductors to the stamped brass outlet-distribution bus bars.
