File:Surge APC Pro7 Z99080215662 teardown tracedetail 01.jpg
Jump to navigation
Jump to search
Size of this preview: 800 × 450 pixels. Other resolution: 1,600 × 900 pixels.
Original file (1,600 × 900 pixels, file size: 822 KB, MIME type: image/jpeg)

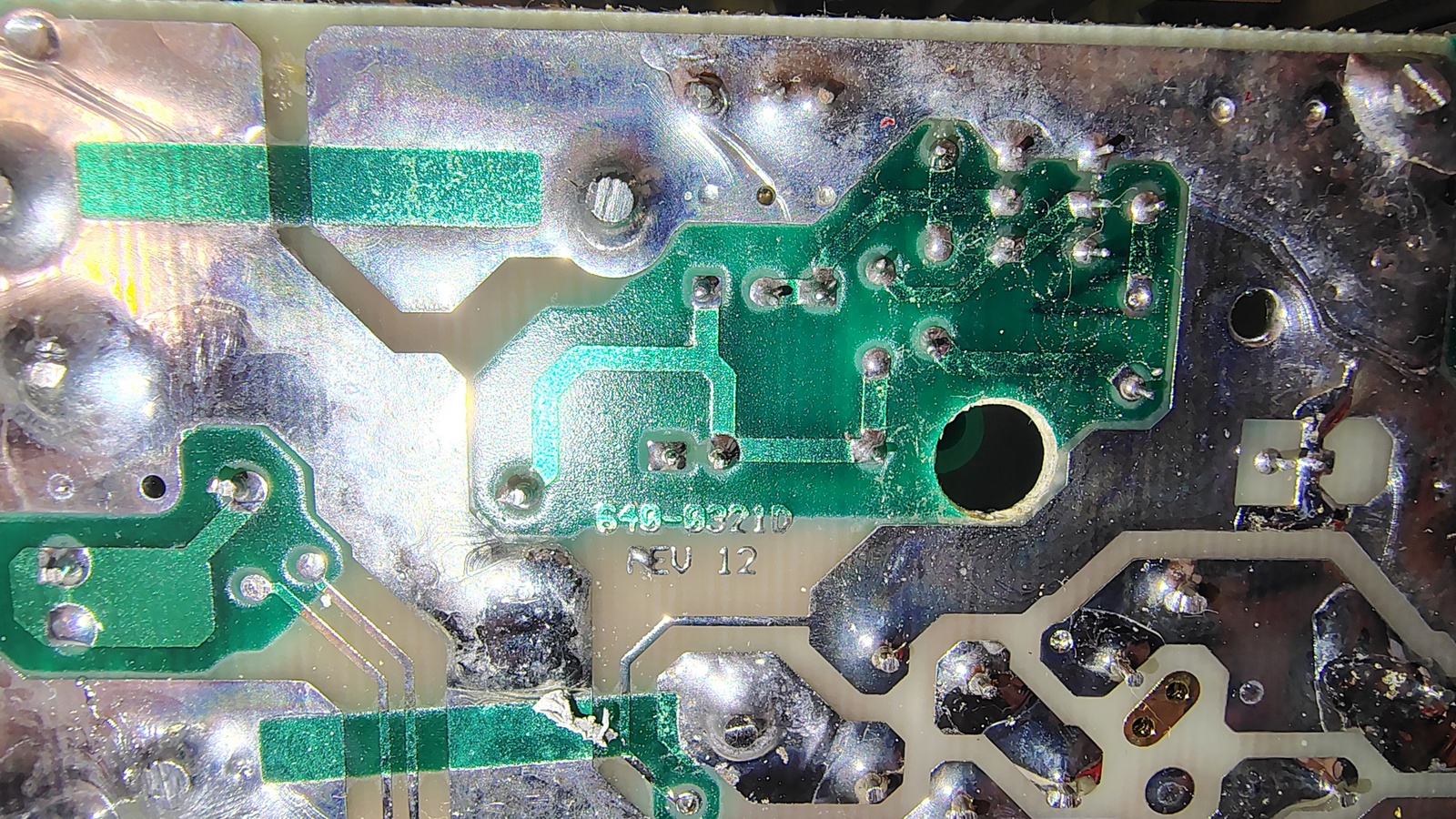

Close-up view of the underside of the APC SurgeArrest Professional PRO7 suppression circuit board showing board number 640-0321D, revision 12, electrical traces, solder joints, and PCB construction details.
