File:Surge APC Pro7 Z94030204087 teardown boarddetail 03.jpg
Jump to navigation
Jump to search
Size of this preview: 800 × 353 pixels. Other resolution: 1,600 × 705 pixels.
Original file (1,600 × 705 pixels, file size: 365 KB, MIME type: image/jpeg)

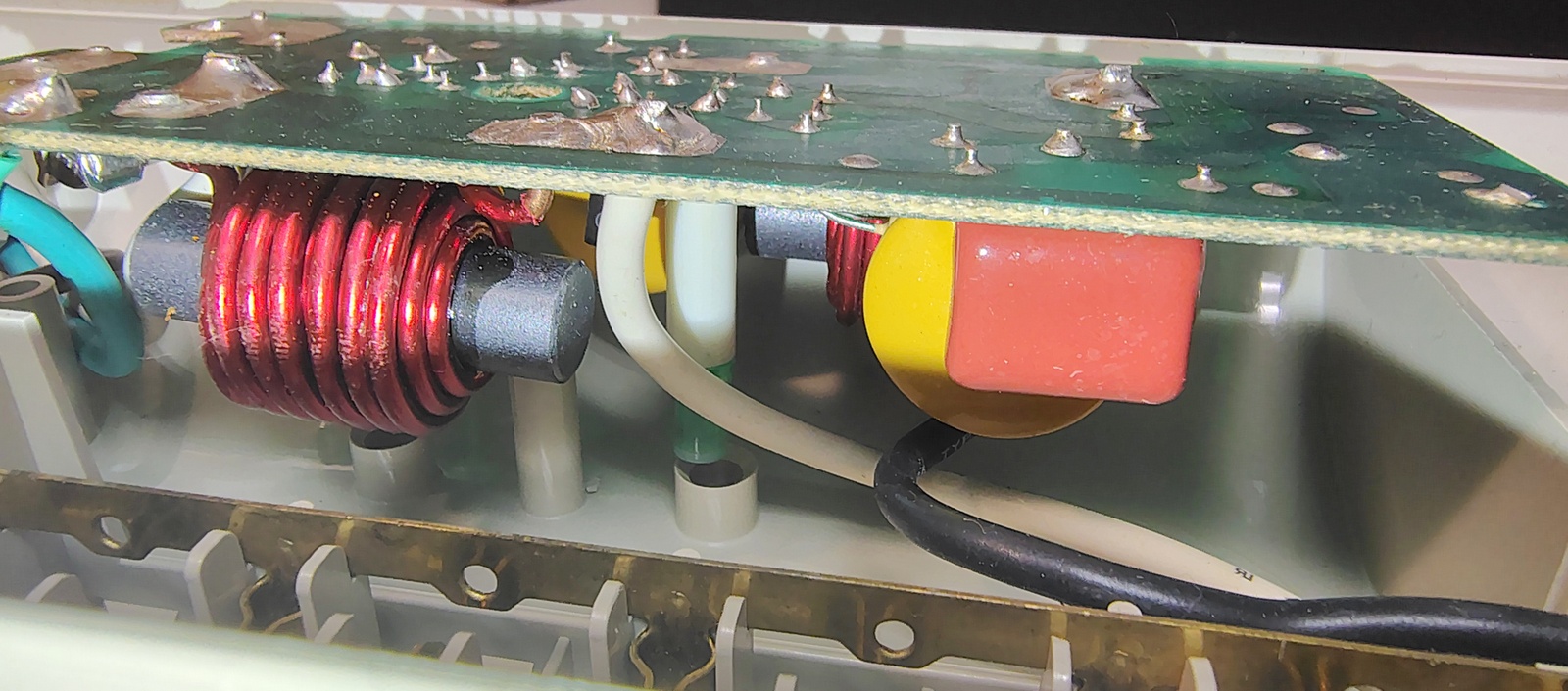

Low-angle view of the ©1993 suppression board from APC SurgeArrest Professional PRO7 serial number Z94030204087 showing toroidal filtering inductors, suppression components, associated wiring, and brass outlet-contact strips.
