File:Surge APC Pro7 Z94030204087 teardown boarddetail 01.jpg
Jump to navigation
Jump to search
Size of this preview: 800 × 511 pixels. Other resolution: 1,600 × 1,022 pixels.
Original file (1,600 × 1,022 pixels, file size: 583 KB, MIME type: image/jpeg)

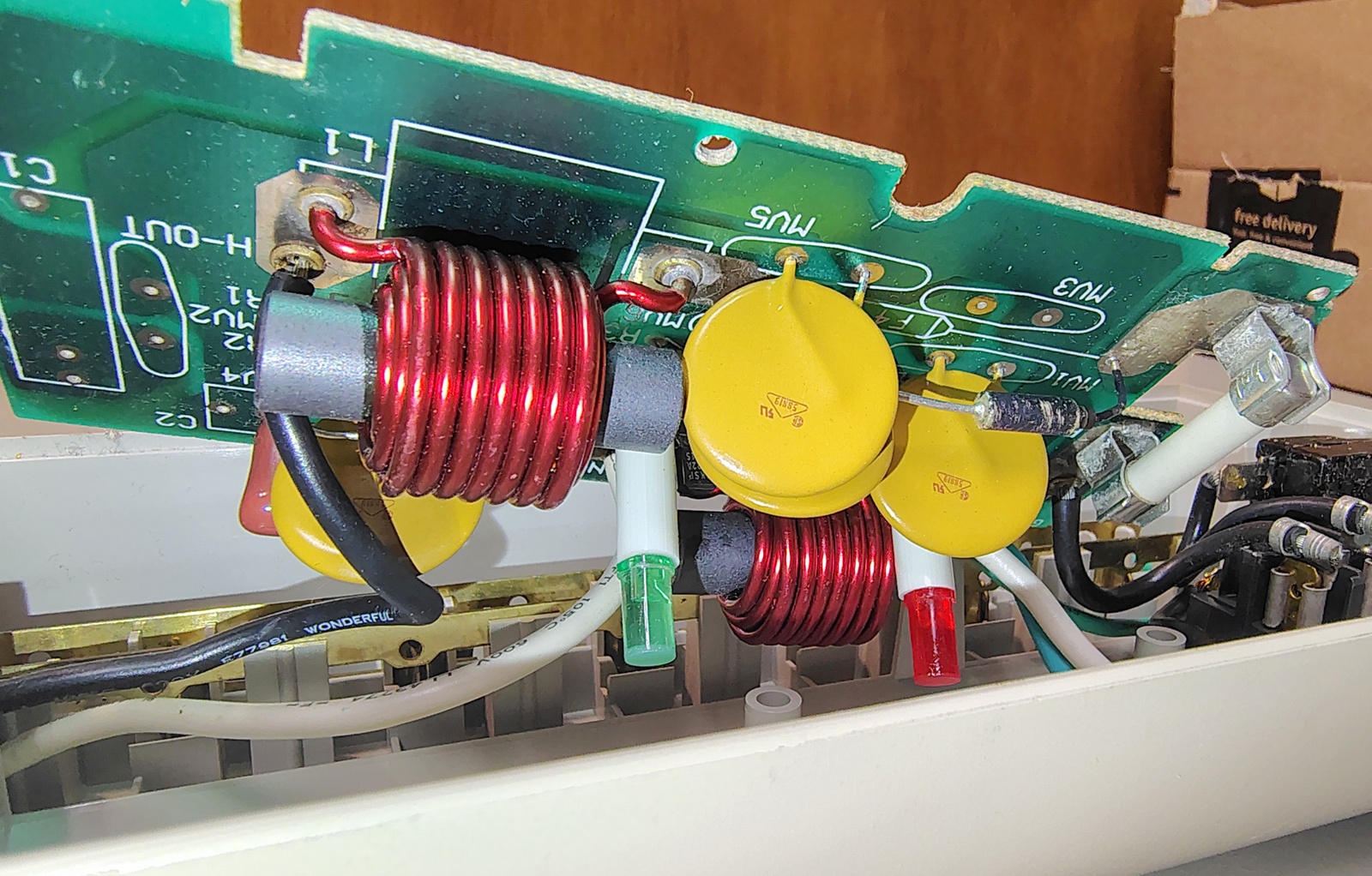

Suppression circuitry from APC SurgeArrest Professional PRO7 serial number Z94030204087 showing large toroidal filtering inductors, metal-oxide varistors (MOVs), resistors, fuse, and associated surge-protection components mounted on the ©1993 suppression board.
