File:Surge APC Pro7 7Z1714L0535 teardown open 01.jpg
Jump to navigation
Jump to search
Size of this preview: 800 × 538 pixels. Other resolution: 1,600 × 1,076 pixels.
Original file (1,600 × 1,076 pixels, file size: 512 KB, MIME type: image/jpeg)

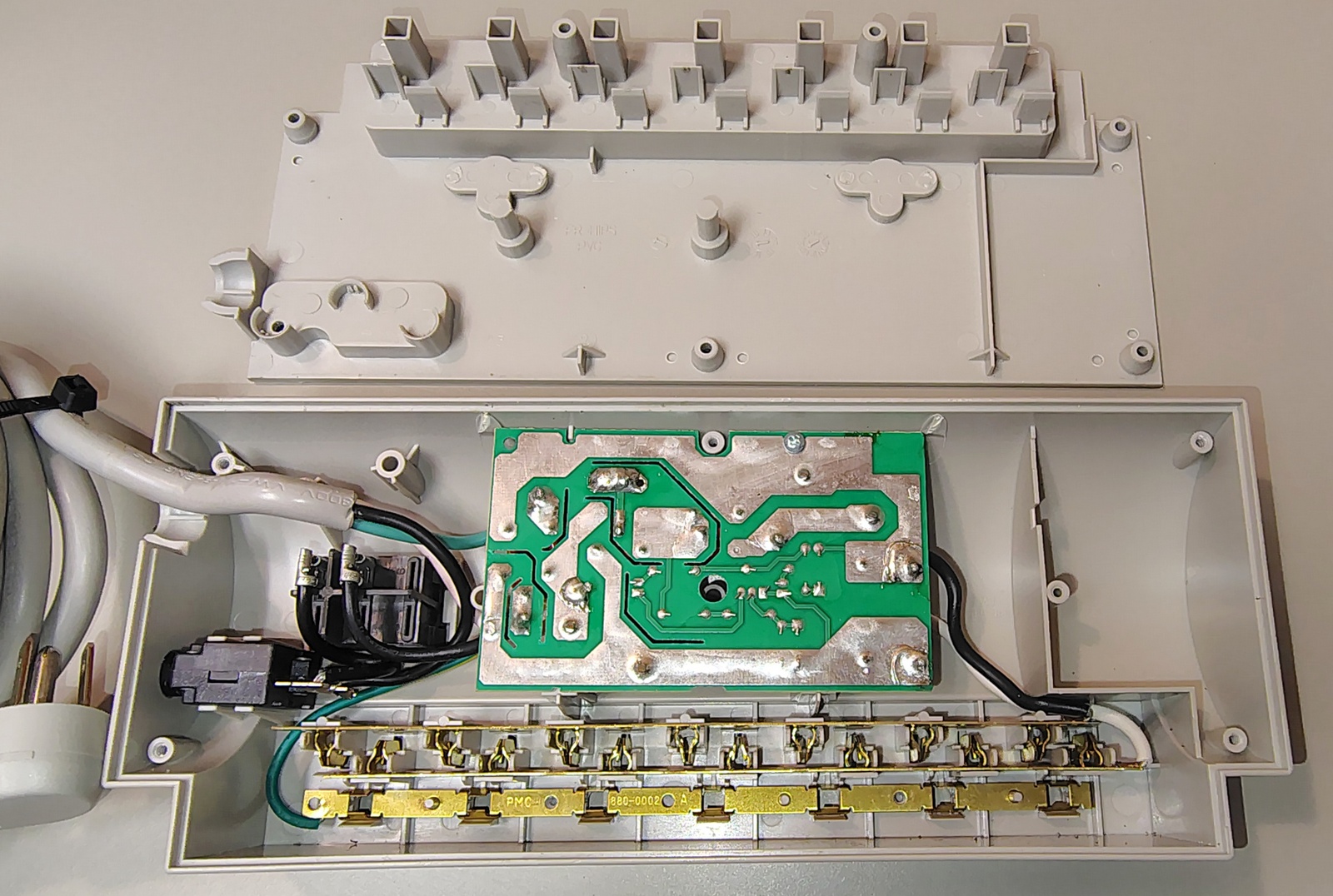

APC SurgeArrest Professional PRO7 opened following disassembly. Visible components include the outlet-contact assemblies, printed circuit board, rocker switch, wiring, and surge-protection circuitry.
