File:Surge APC Pro7 7Z1714L0535 teardown circuitboardclose 01.jpg
Jump to navigation
Jump to search
Size of this preview: 800 × 383 pixels. Other resolution: 1,600 × 766 pixels.
Original file (1,600 × 766 pixels, file size: 454 KB, MIME type: image/jpeg)

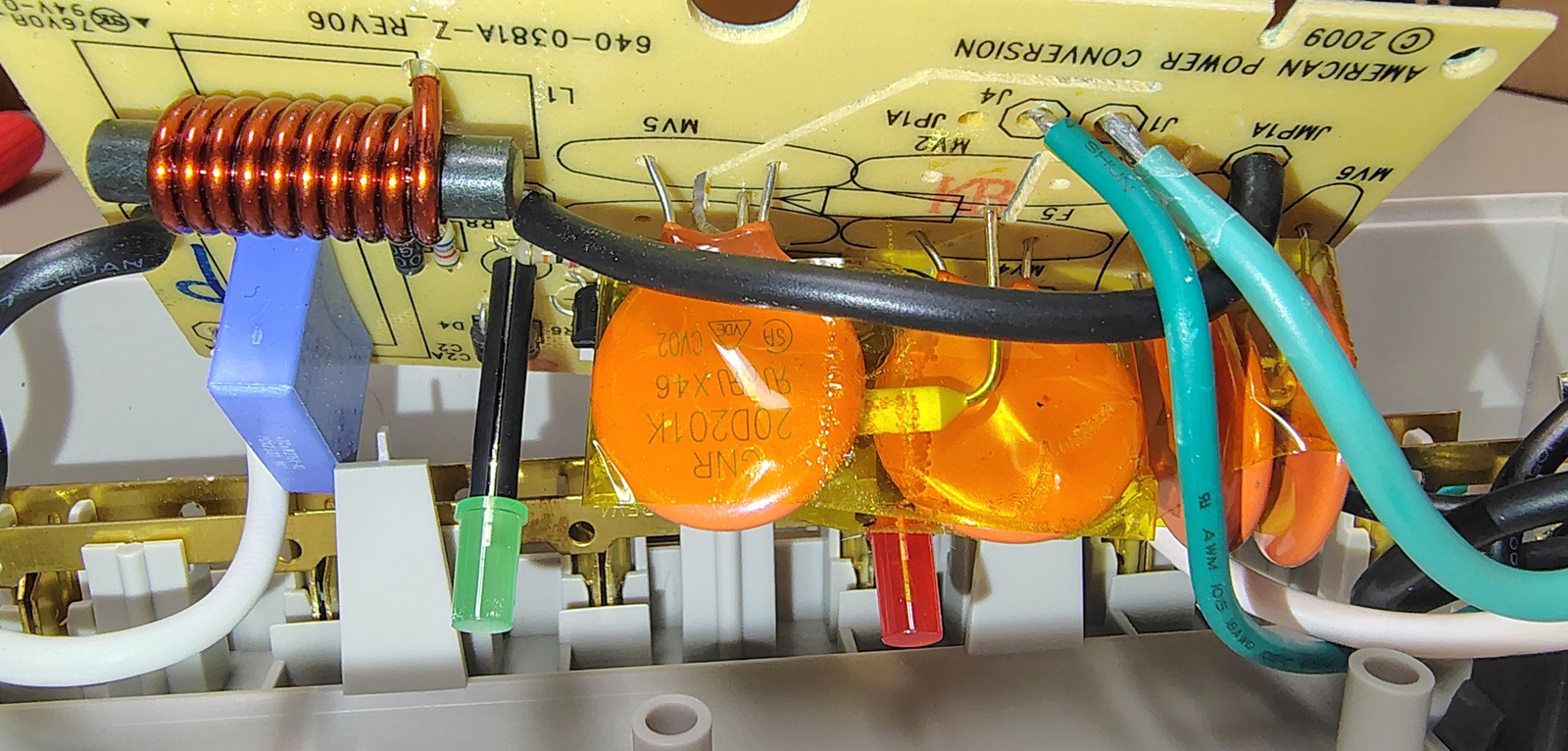

Close-up of the APC SurgeArrest Professional PRO7 suppression circuitry showing multiple MOV surge suppressors, an inductor, and associated filtering components.
