File:Surge APC Pro7 4Z0638P12907 teardown open 01.jpg
Jump to navigation
Jump to search
Size of this preview: 800 × 512 pixels. Other resolution: 1,600 × 1,023 pixels.
Original file (1,600 × 1,023 pixels, file size: 474 KB, MIME type: image/jpeg)

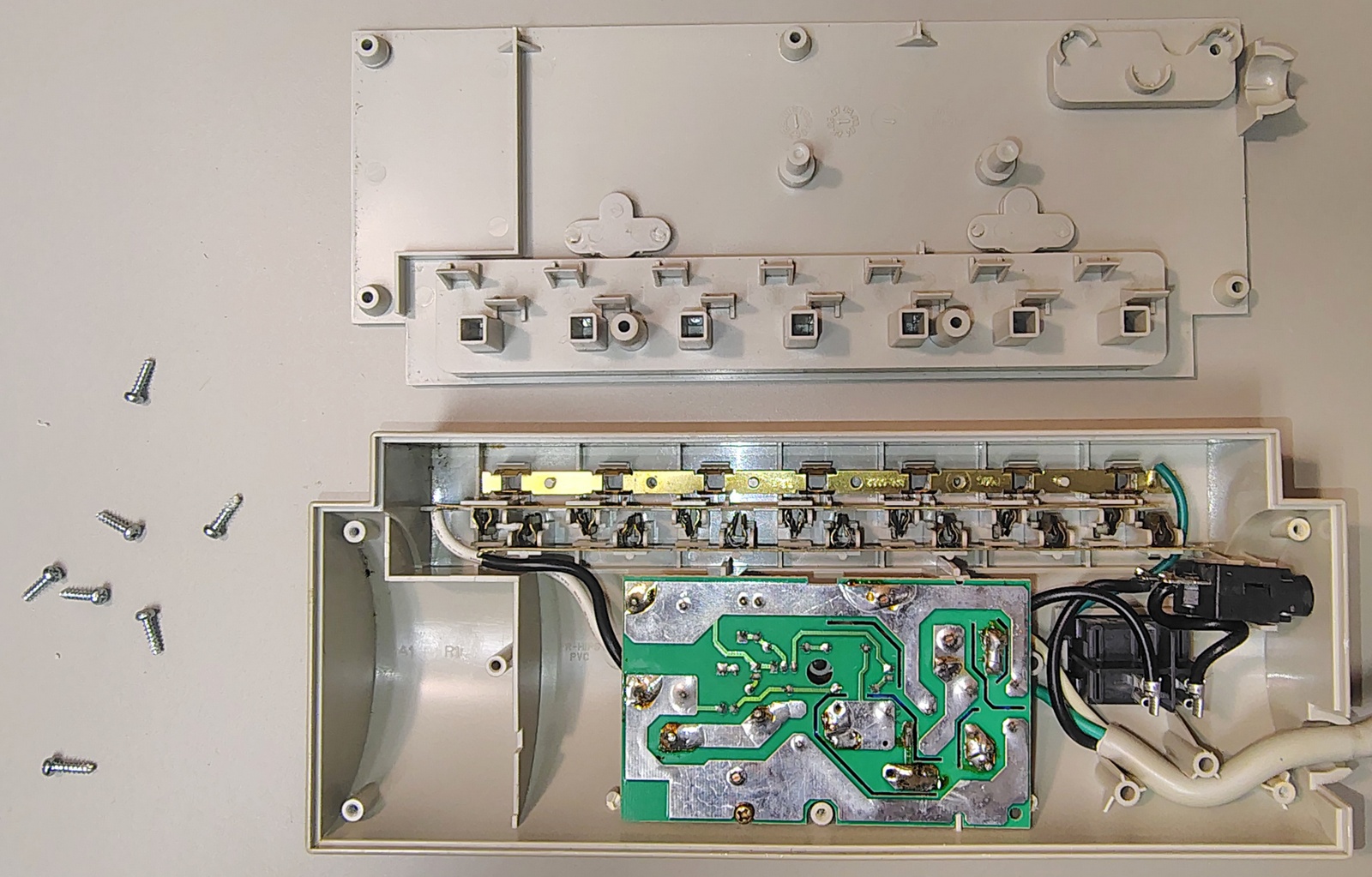

APC SurgeArrest Professional PRO7 opened following removal of the enclosure screws. Visible components include the upper housing, outlet-contact assemblies, brass bus bars, combined switch and circuit-breaker assembly, surge-suppression circuit board, internal wiring, and attached power cord. The image documents the overall internal architecture of the June 2006 specimen.
