File:Surge APC Pro7 4Z0638P12907 teardown bottom cordentry 01.jpg
Jump to navigation
Jump to search
Size of this preview: 800 × 480 pixels. Other resolution: 1,600 × 959 pixels.
Original file (1,600 × 959 pixels, file size: 592 KB, MIME type: image/jpeg)

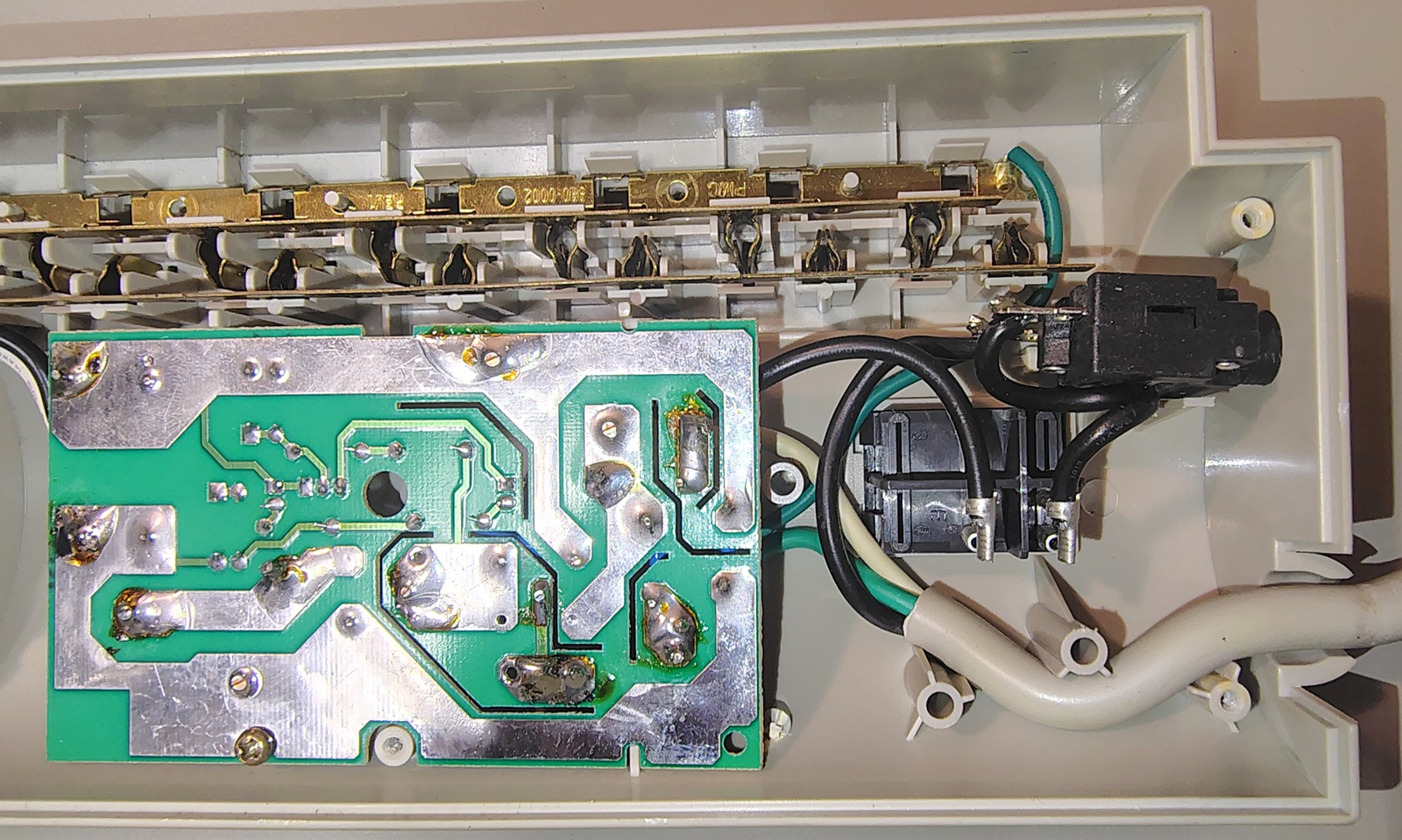

Cord-entry section of the lower housing of an APC SurgeArrest Professional PRO7 manufactured in June 2006. Visible features include the power-cord termination, rocker-switch and circuit-breaker assembly, equipment-ground conductor, internal wiring, and the underside of the surge-suppression circuit board. The image documents APC's mid-2000s power-distribution and overload-protection architecture.
