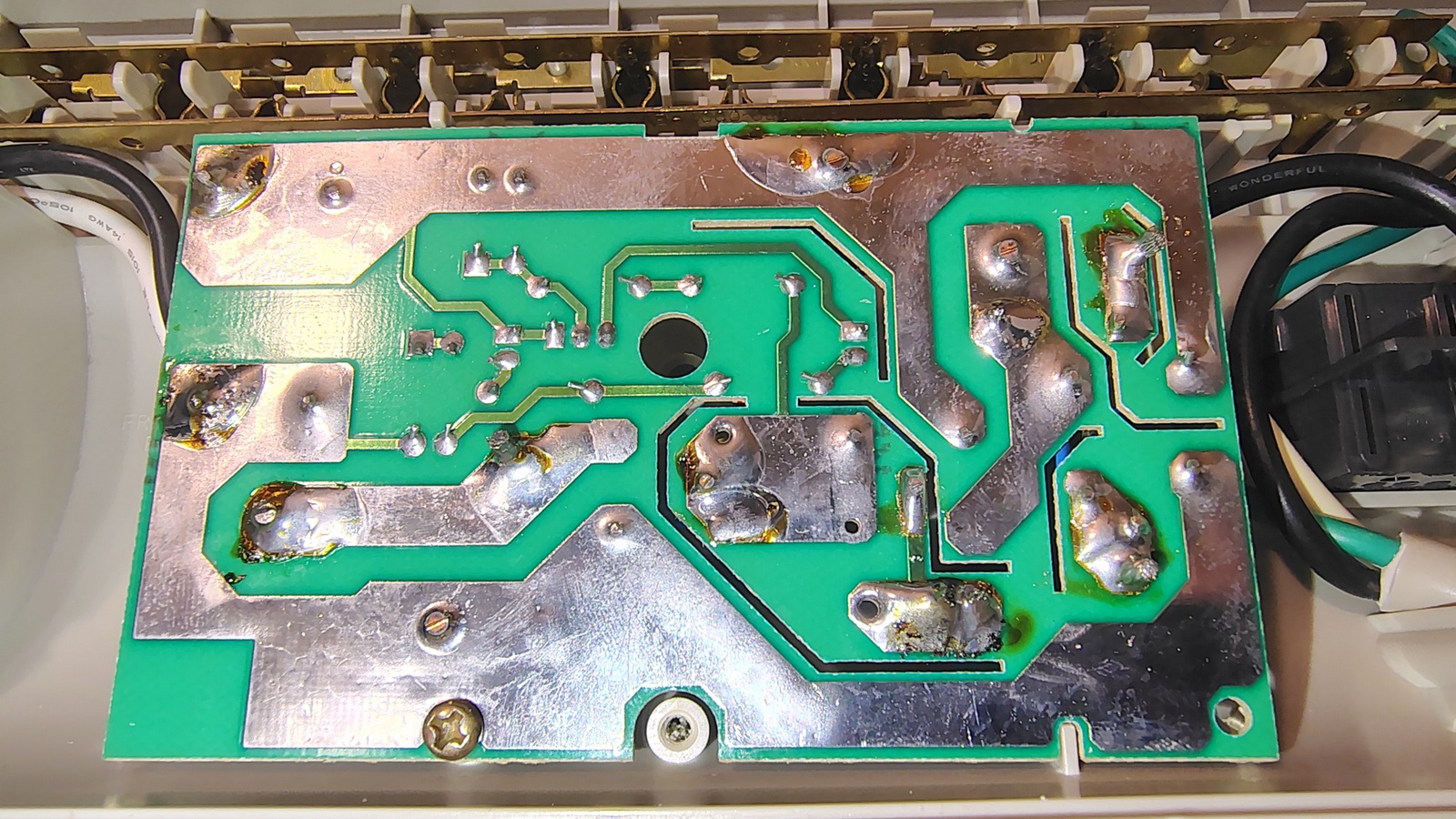

Underside view of the APC SurgeArrest Professional PRO7 suppression circuit board. Visible features include heavy copper power traces, soldered wiring connections, component leads, and power-distribution circuitry associated with APC's ©2002 board generation.
