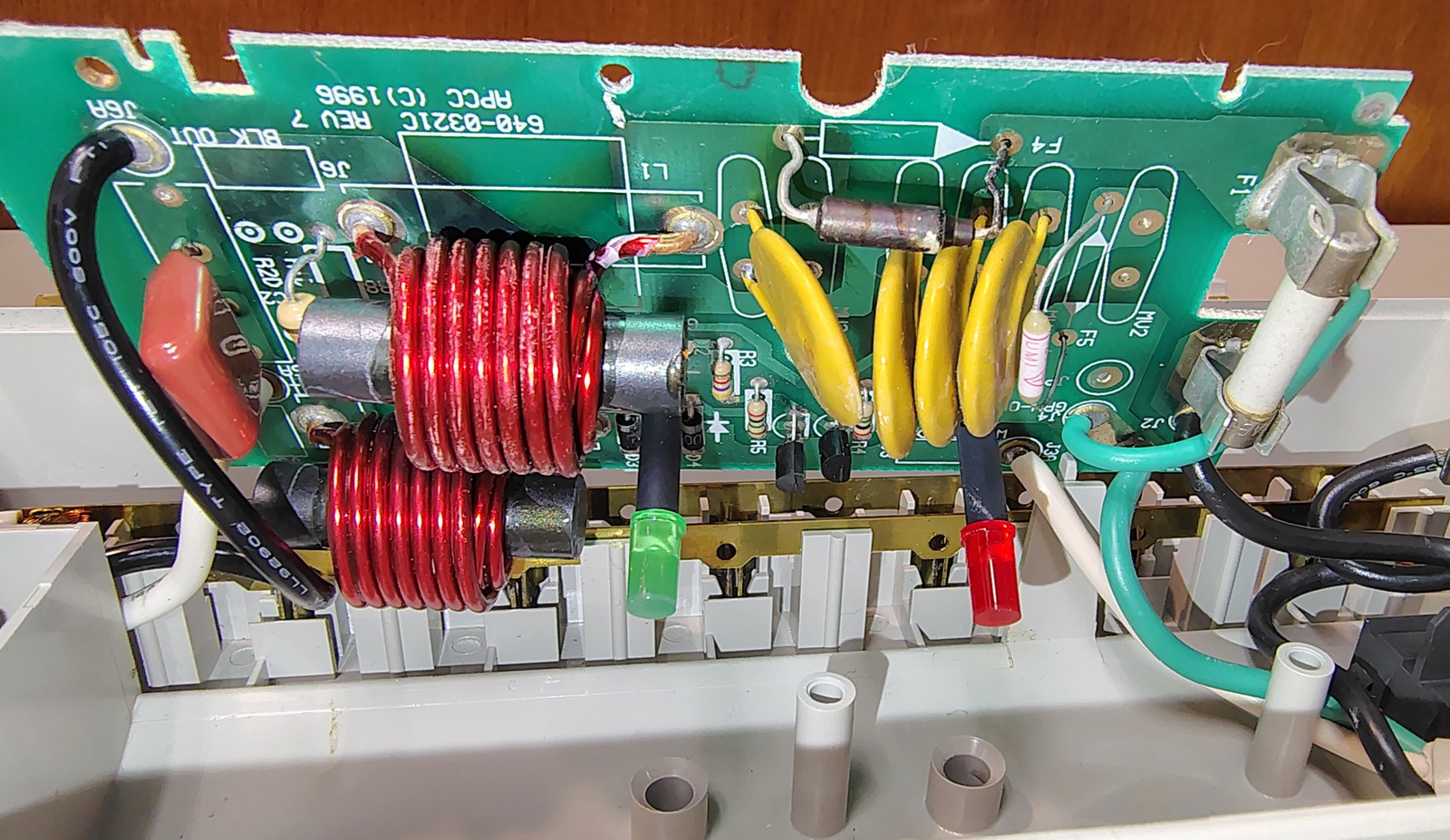

Component side of the APC SurgeArrest Professional PRO7 suppression circuit board. Visible components include MOVs, filtering inductors, indicator LEDs, fuse protection, and circuitry associated with surge suppression and status indication. The board is marked American Power Conversion 640-0321C Rev 7 ©1996.
