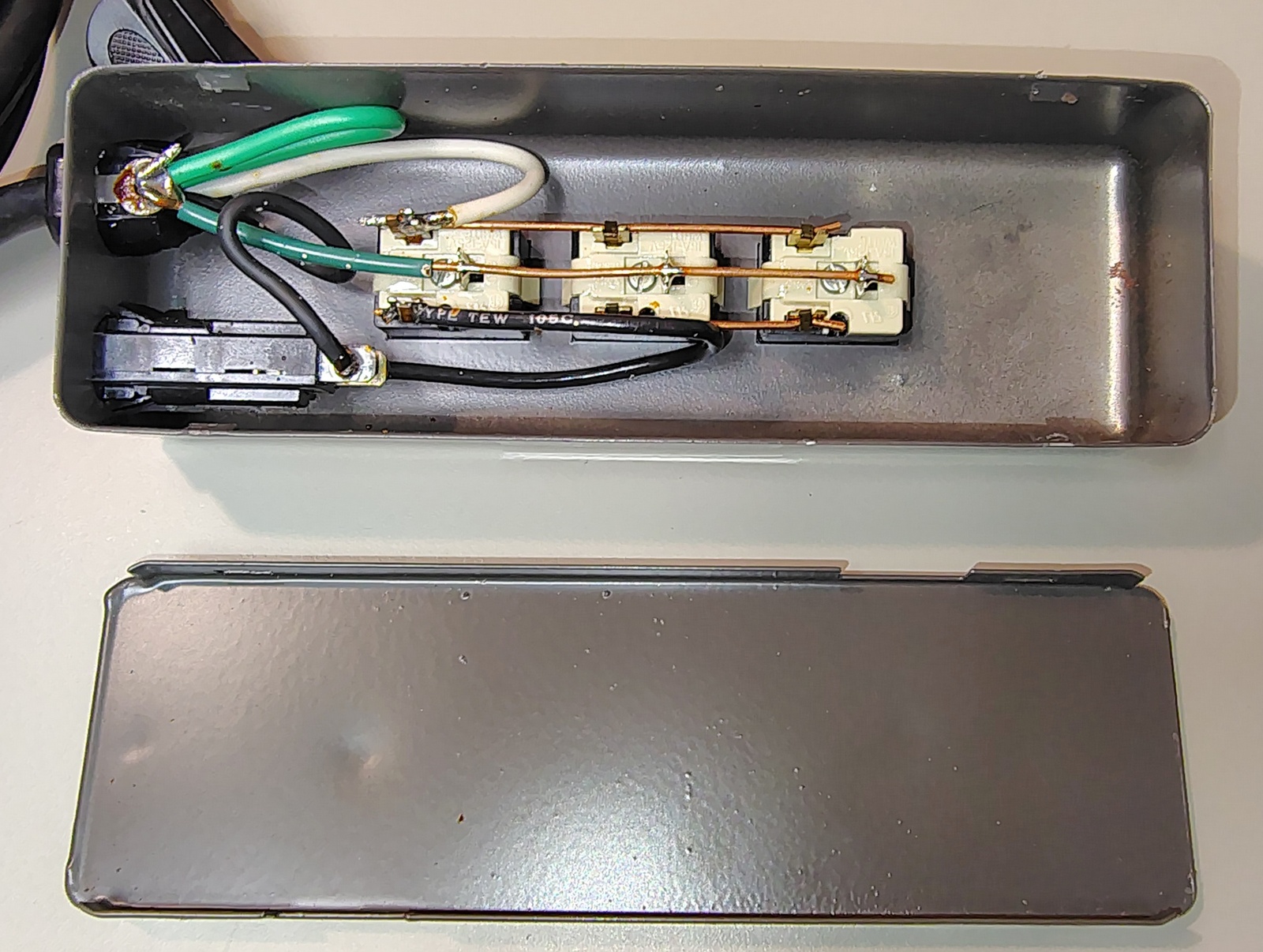

Overall internal view of the S.L. Waber 952M after removal of the enclosure cover. Construction consists of three receptacles connected using solid copper bus conductors, a resettable 15-amp circuit breaker, and a heavy-duty three-conductor power cord. No surge suppression or filtering components are present.
